HDMI 2.1 eARC Bundle

× GP Cable, SMA(m), 1.00m, 5GHz BIT-1004-0007-0

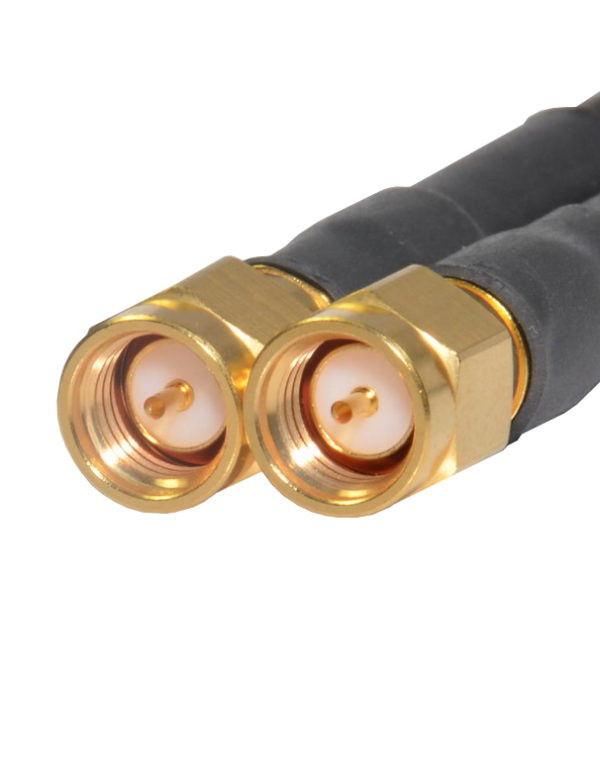

× GP Matched SMA(m) Cable Pair, 1m BIT-1004-0003-0

- 4 pieces are necessary for RX Tests
- 2 pieces are necessary for TX Tests

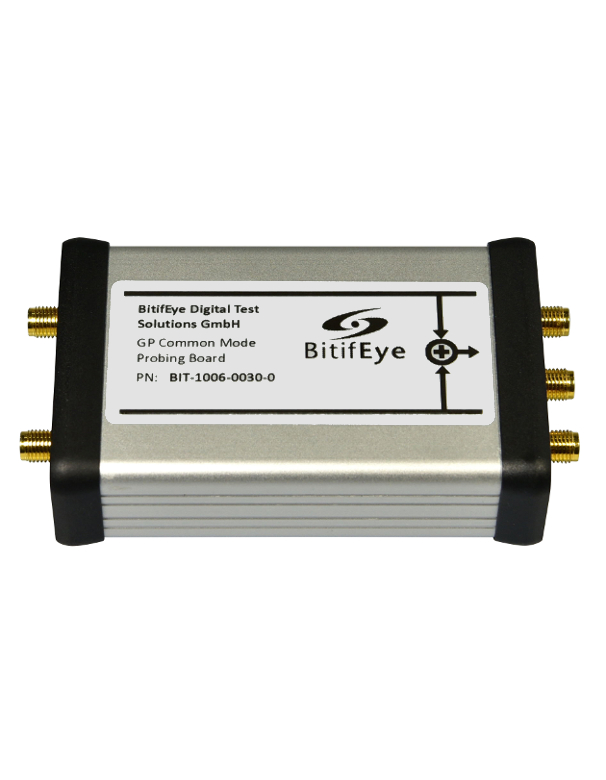

× GP Common Mode Probing Board BIT-1006-0030-0

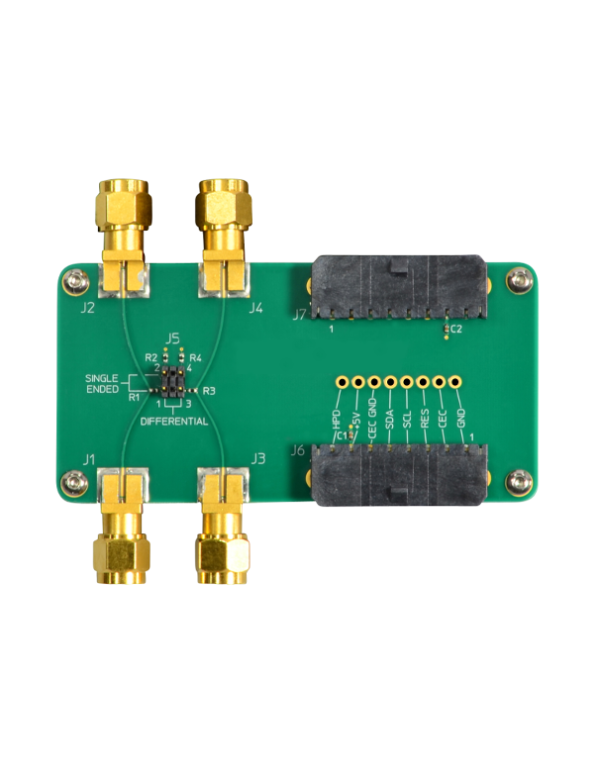

× eARC Probing Board BIT-1010-0500-0

- only necessary for TX Tests

× GP Precision SMA Female to BNC Male Adapter BIT-1005-0009-0

- only necessary for RX Tests

× HDMI 2.1 Type A HEAC Plug w/6 inch Coaxial Cable w/Female SMA BIT-1010-0420-0

× eARC CTS Protocol Bundle BIT-4011-0870-0

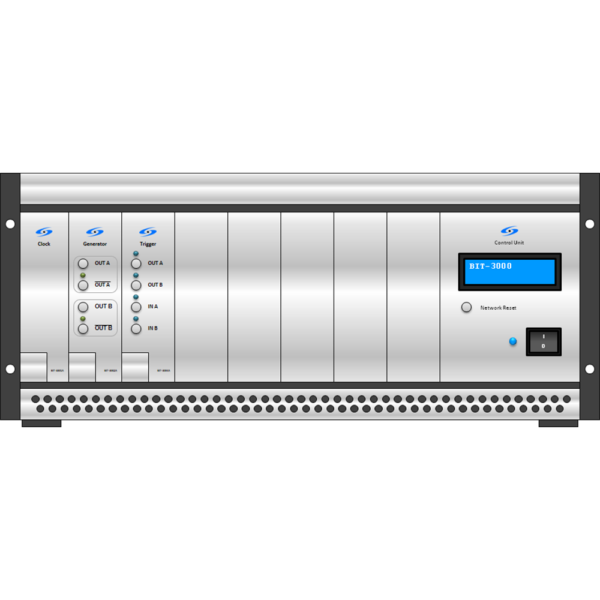

× DSGA Platform Bundle for HDMI eARC RX and TX Test, for Keysight 81160 AWG BIT-4000-3093-0

Proceed to inquiry form jQuery( document ).ready(function($) { //console.log( "ready!" ); $('.proceed_click').on('click', function() { $('#tab-title-inquiry_form a').trigger('click'); }); });

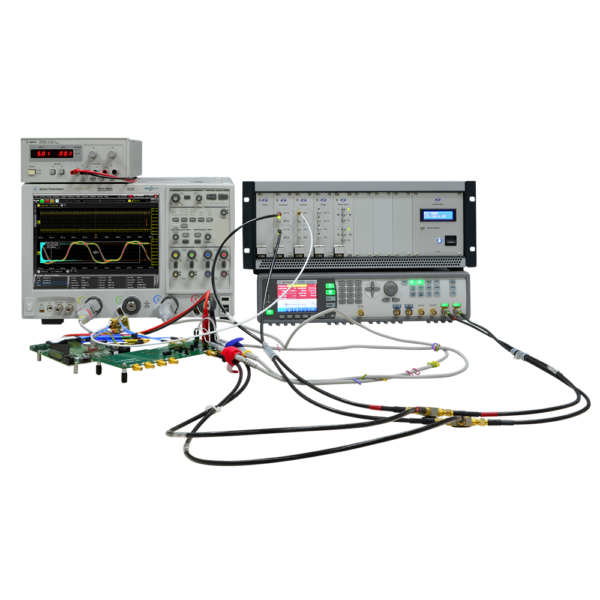

Note: The bundle products form just part of the test setup. For instruments etc. for the full configuration, contact your local Keysight representative.
