Switching Solutions – The BIT-2100B Series
- Quick multi-lane testing for receiver (RX), transmitter (TX), cable and connector DUTs
- Highest level of test automation
- Fastest test execution, shortest test times
- Provides high throughput and higher test instrument availability
- Ultimate data quality
- Fully integrated software
- Minimum wear for instrument and cable connectors

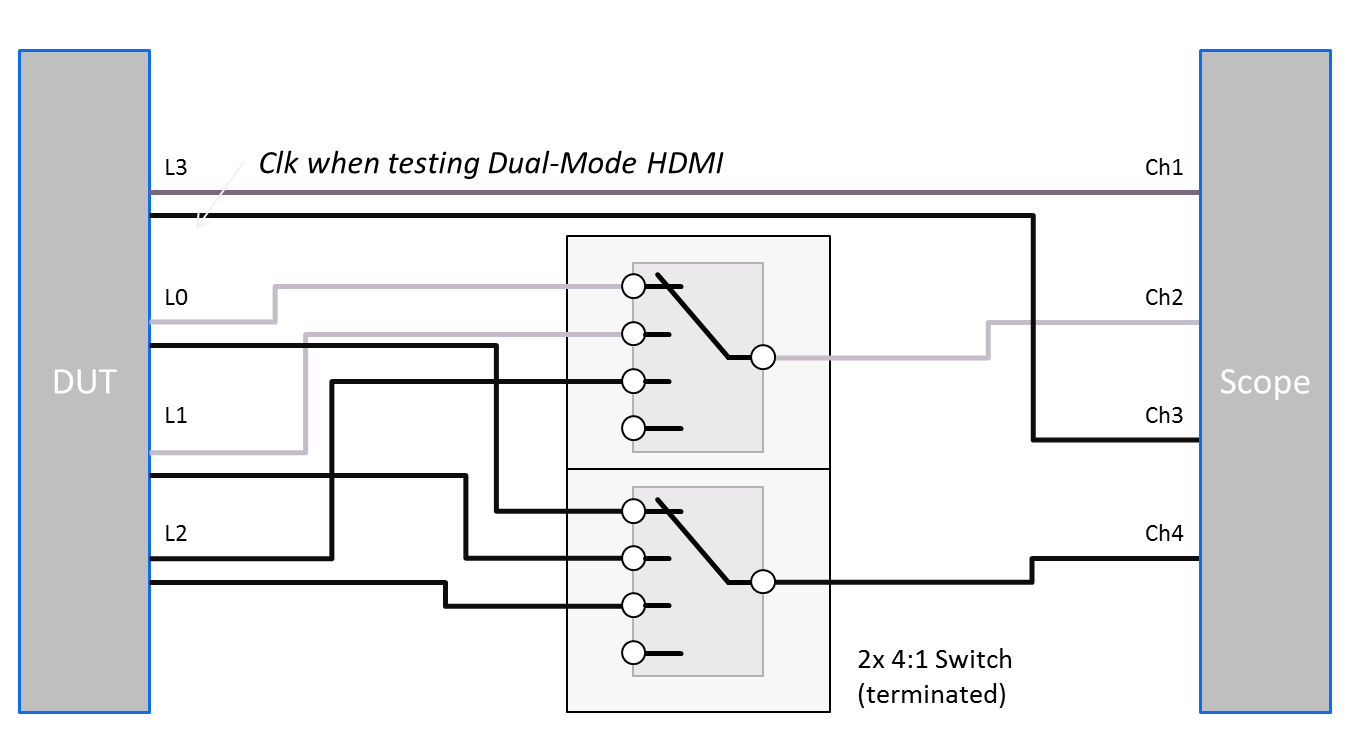

- Two switch modules 4:1, DC to 26.5 GHz, terminated
(BIT-4000-2114-1) - One Mainframe (BIT-4000-2100-1)

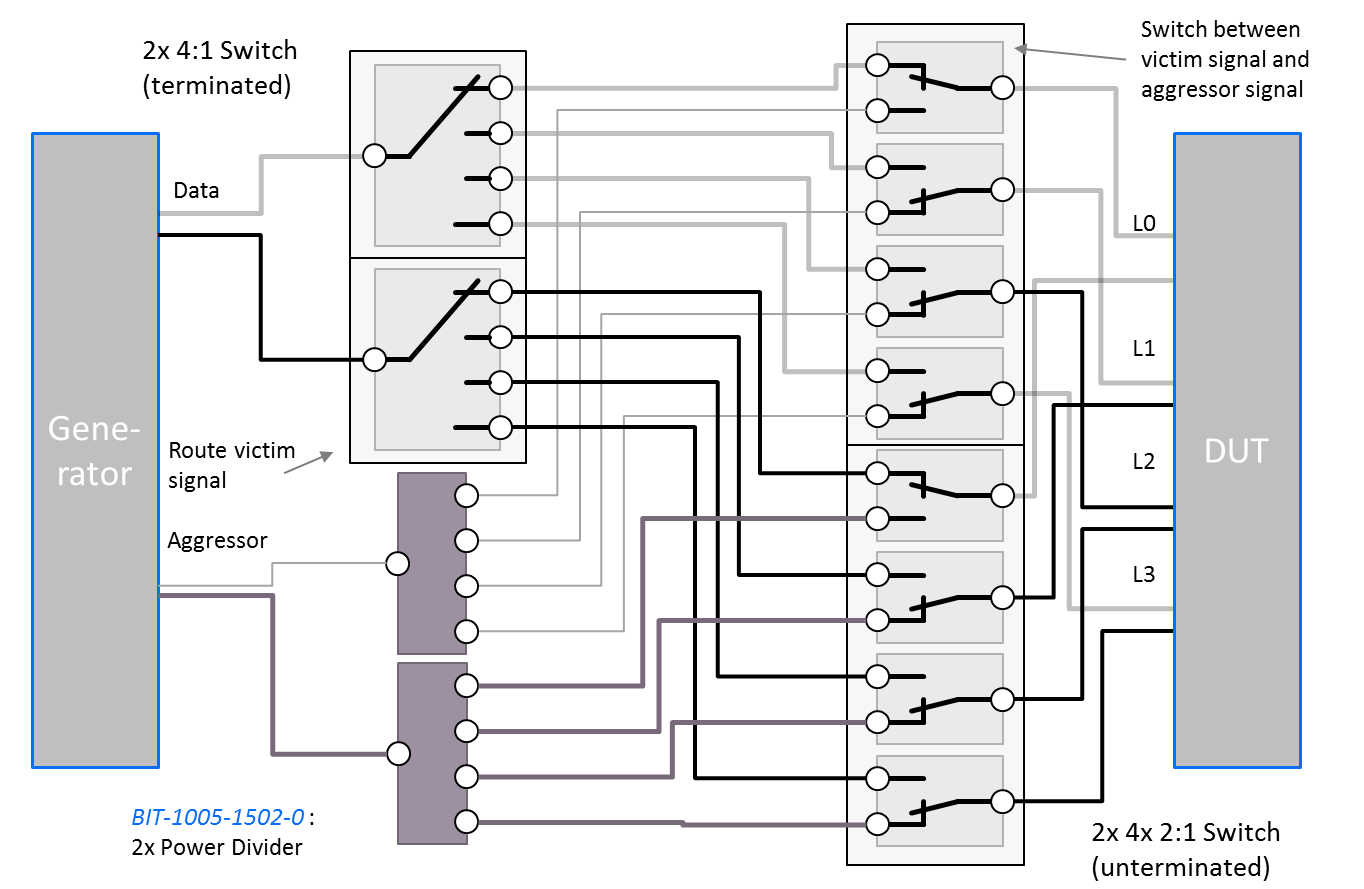

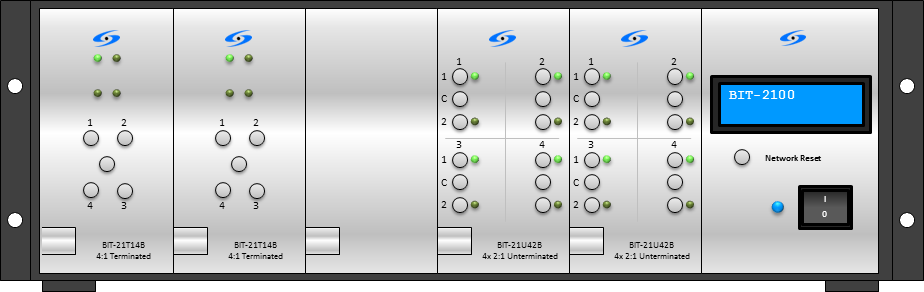

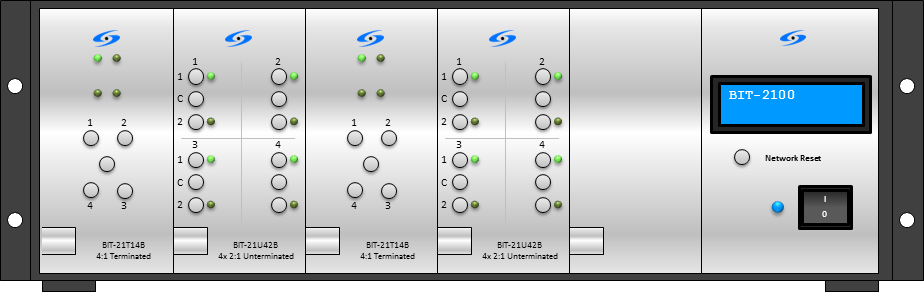

- Two switch modules 4:1, DC to 26.5 GHz, terminated
(BIT-4000-2114-1) - Two switch modules 4x 2:1, DC to 26.5 GHz, unterminated
(BIT-4000-2143-1) - One Mainframe (BIT-4000-2100-1)
* In DP RX Test Multilane Automation the Switch supports Keysight BERT M8040A for UHBR Tests and Keysight BERT M8050A for HBR+UHBR Tests
